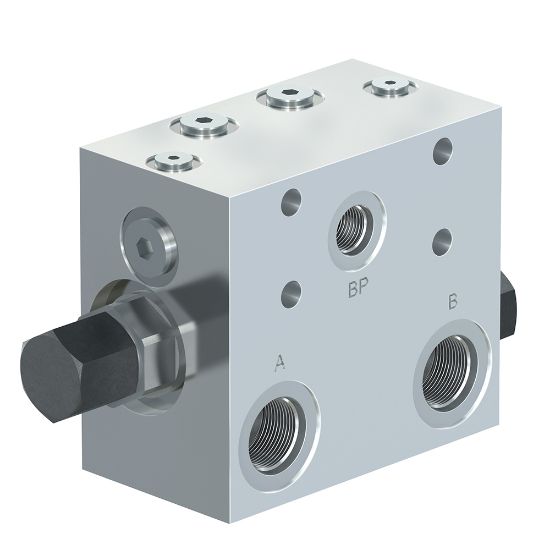

Picture of Motor Control Valves - MMB-015-BAMH-53B

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Motor Control Valves - MMB-015-BAMH-53B

Note: This product is no longer available - please contact us for further assistance.
Availability: Backordered
SKU: MMB-015-BAMH-53B
POR
Products specifications
Attribute nameAttribute value
DivisionHydraulic Systems DivisionMaximum Operating Pressure210 bar
Weight1.5 lbPilot Pressure Ratio1:1
Brake Release Pressure24 barMaximum Operating Temperature+400 °F
Valve MaterialAll parts steel. All operating parts hardened steelOperation TypeAutomatic
Port SizeSAE-10Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-26 °CMaximum Flow Rate56.25 L/min
Maximum Inlet Pressure Rating210 barBrake Release Port SizeSAE-6
VentedNoActuation TypePressure Sensing
FunctionSingle Motor ControlFor Fluid TypeMineral-based or synthetic hydraulic fluids
DivisionHydraulic Valve Systems DivisionFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Seal MaterialFluorocarbonHolding Pressure3000 psi
Body MaterialAluminumConfigurationMotor Control on B port
Minimum Pilot Pressure21 barFlow Rate15 Gal/min
Leak Rate5 @ 80% Holding Pressure drops/minMounting TypeManifold Mount
Operating Temperature-15 to +400 °F
Flow Rate15 GAL/MIN, 56.25 L/MINPilot Pressure Ratio1:1
Brake Release Pressure350 PSI, 24 BARVentedNo
ConfigurationMotor Control on B port
