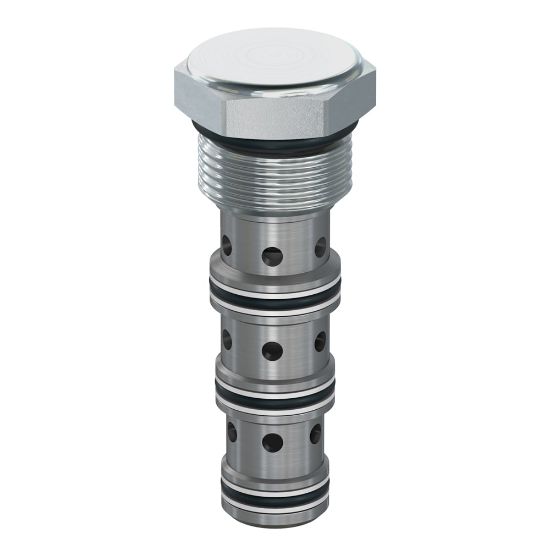

Picture of Flow Divider/Combiner Valves - FDC101A66

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flow Divider/Combiner Valves - FDC101A66

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.
Availability: Backordered
SKU: FDC101A66
POR
Products specifications
Attribute nameAttribute value
Body MaterialN/AConfigurationn/a
Connection Sizen/aConnection Typen/a
Seal MaterialNitrileMinimum Operating Temperature-30 °F
DivisionHydraulic Systems DivisionDivisionHydraulic Cartridge Systems Division
Weight0.3 lbInstallation Torque22 Nm
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Maximum Operating Pressure245 bar
Operation TypeAutomaticCavity SizeC10-4
Flow Rate45 L/minMaximum Flow Rate45 L/min
For Fluid TypeMineral-based or synthetic hydraulic fluidsMaximum Operating Temperature+250 °F
Valve MaterialAll parts steel. All operating parts hardened steelOperating Temperature-34 to +121 °C
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Maximum Inlet Pressure Rating245 bar
Flow Rate Accuracy10%FunctionFlow Divider/Combiner
Actuation TypeInterlocking SpoolsRatio50/50
Standard Flow Rate Setting4-8 Gal/min
Seal MaterialNitrileRatio50/50
Flow Rate12 GAL/MIN, 45 L/MINStandard Flow Rate Setting6-12 GAL/MIN, 22.5-45 L/MIN
